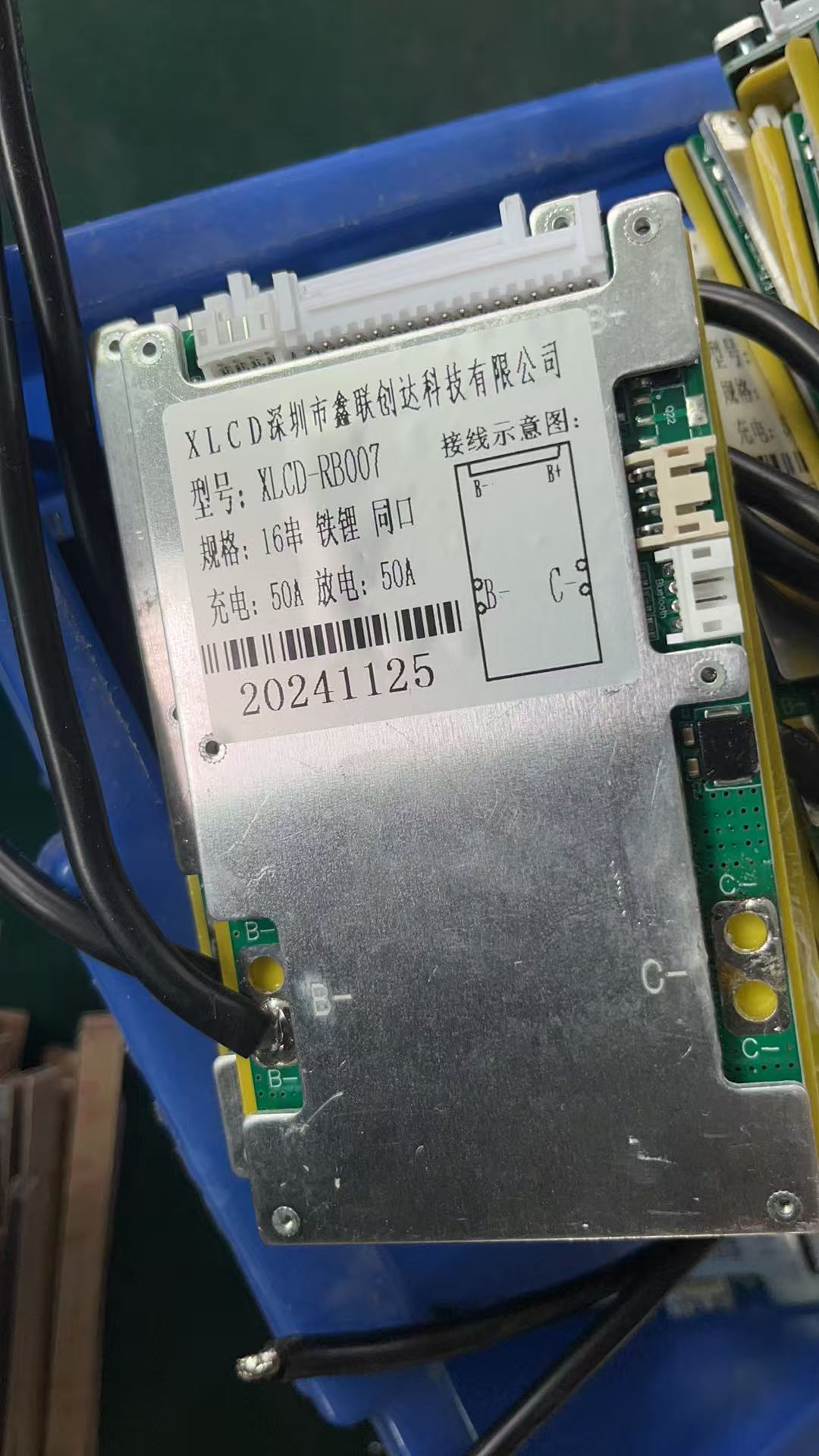

16S 1P Cells Lifepo4 Lithium Battery Pack Protection PCB BMS Board

Regular price $50.00 USD
Regular price Sale price $50.00 USD
Sale Sold out
Shipping calculated at checkout.
Parameters :
  • Protection Circuit Module Specifications For li-lon Battery Pack, Different with normal PCB, it provides equilibrium function after battery pack is fully charged, e.g. PCM will detect each cell's voltage and trim higher voltage until other cell's voltage reach same,therefore allow lithium cell has longer service life. Also the PCM will provide the following protections:
  • Balance each cell at Max. 3.65/cell ( required voltage tolerance within 0.3V for each cell)
  • Overcharge protection voltage for single cell: 3.65V ± 0.03V
  • Overdischarge protection voltage for single cell: 2.5V± 0.1V
  • Continus working current: 50A
  • Overcurrent detection protection: 50A
  • Supply current: Max 30uA
  • Short circuit protection
  • Protection circuitry resistance: <=50mohms
  • Charging current:  10A


  • Please do not plug in wrong polarity, otherwise the module will be completely destroyed.
  • The resistance potential ratio of energy display module in different packs are different,only use the voltage that the label nominated.
  • Please make sure your selection is correct before you buy.


1). 30 days money back guarantee on all orders if you're unsatisfied for any reason with one of our batteries

2). 1 year warranty on all orders

3). Lifetime technical support
